CNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine
  • CNC Servo-Motor Thread Rolling MachineCNC Servo-Motor Thread Rolling Machine

CNC Servo-Motor Thread Rolling Machine

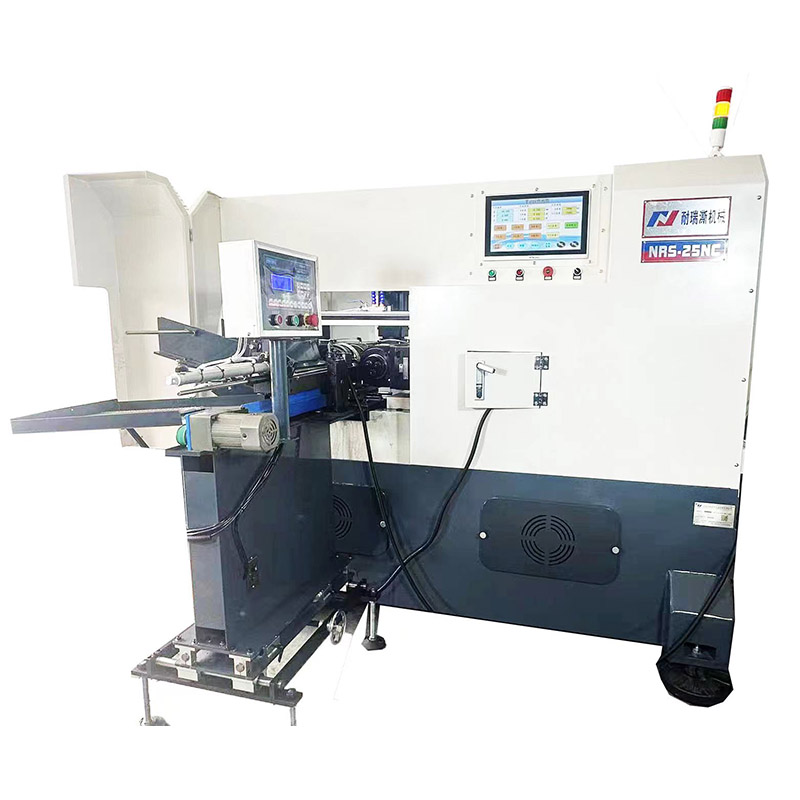

This CNC Servo-Motor Thread Rolling Machine can also process a variety of tooth shape products, such as: worm teeth, trapezoid teeth, ball Screw, rolling, knurling, rolling groove, etc. need to be determined according to the drawing surface.

Model:NRS-25NC/NRS-15NC

Send Inquiry

Product Description

CNC Servo-Motor Thread Rolling Machine


I、The main features of this CNC Thread Rolling Machine :


   A. Model code is servo motor drive, maximum output 30Tons.



  B. The following workpieces can be made according to the type of the roller:


   1. [In Feed] :  frequently-used 55 ° and 60 ° triangle thread,  the CNC Thread Rolling Machine can process workpiece:


       Diameter ≤φ80MM, pitch≤ 8.0MM, the maximum length is 150MM


  2. [Thru-Feed ] frequently-used 55 ° and 60 ° triangle thread pitch ≤8.0MM, the Length and the Diameter is free


C. Structural features: The two roller shafts are driven by servo motors, and the feed shaft is rolled by servo motors

     Bead rod transfer into feed.


D. This rolling machine can also process a variety of tooth shape products, such as: worm teeth, trapezoid teeth, ball


   Screw, rolling, knurling, rolling groove, etc. need to be determined according to the drawing surface.


II、Technical specifications:

 1. Outer diameter of rolling thread :φ3 ~ φ80MM

 2. Rolling thread pitch: 0.6 ~8.0MM


 3. Spindle speed :10 ~60RPM(stepless speed regulation)

 4. Outer diameter of wire roller (MAX):φ210mm, keyway size 20*8mm/mm.

 5. Spindle outer diameter :φ75mm(h7)

 6. Width and length of wire roller: the longest can be used to 150MM, according to the demand of the workpiece


 With, - the general common specifications are 35, 40, 50, 60, 70, 100MM

  7. Maximum distance between two spindles :280mm


 8. Minimum distance between two spindles :180mm


 9. Maximum rolling pressure :30Tons


 10. Roller drive horsepower :11KW

 11. Feed propulsion horsepower :5.5KW


 12. Height from ground to roller center :1050MM


 13. Floor area :2100Lmm*1600Wmm*2100Hmm

 14. Net weight :3200kgs; Gross weight :3000kgs
