High Speed Precision Thread Rolling Machine
  • High Speed Precision Thread Rolling MachineHigh Speed Precision Thread Rolling Machine
  • High Speed Precision Thread Rolling MachineHigh Speed Precision Thread Rolling Machine
  • High Speed Precision Thread Rolling MachineHigh Speed Precision Thread Rolling Machine

High Speed Precision Thread Rolling Machine

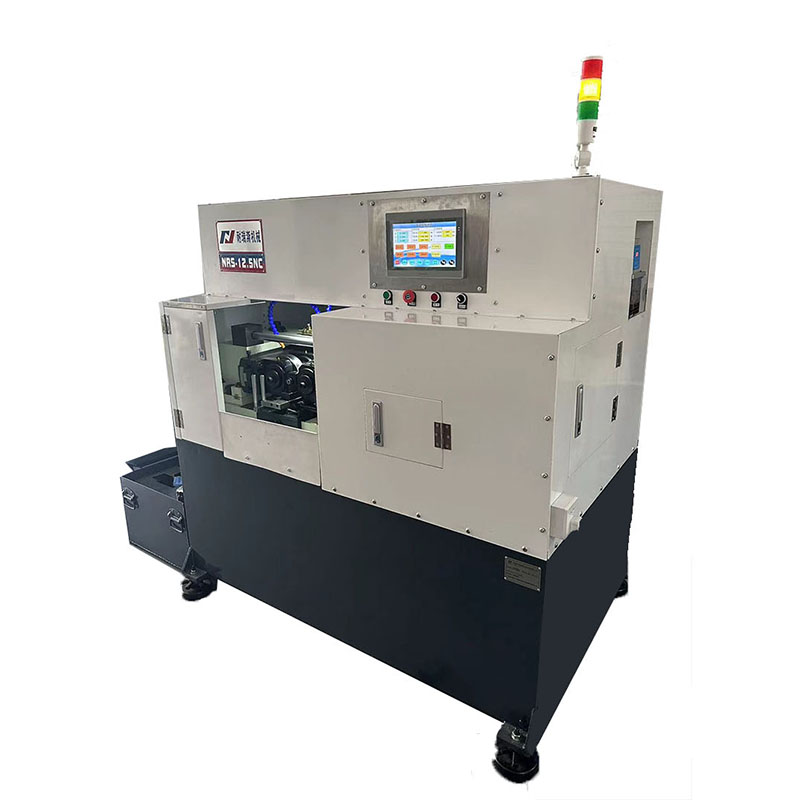

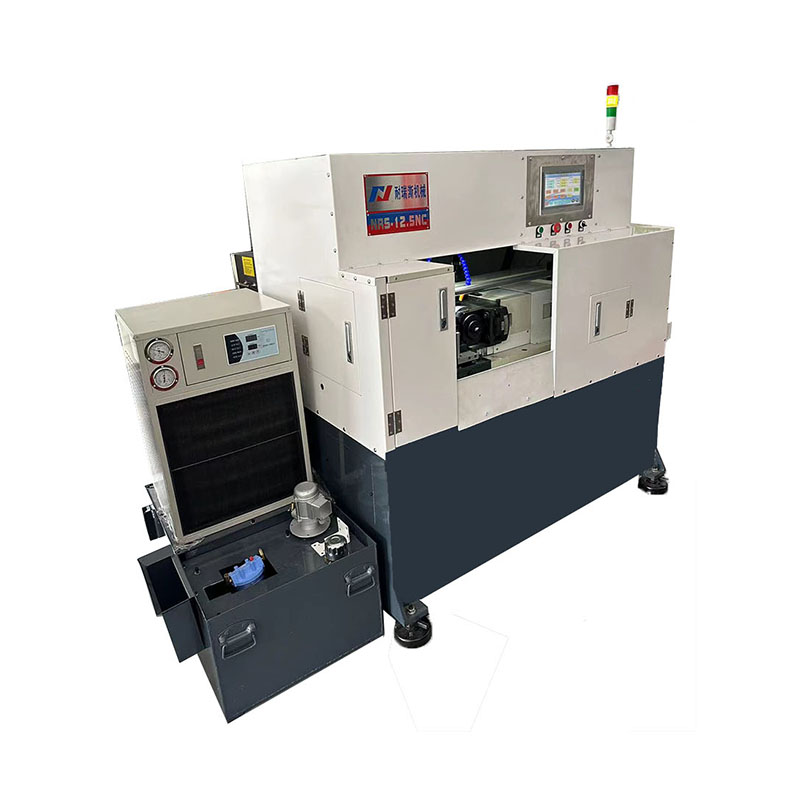

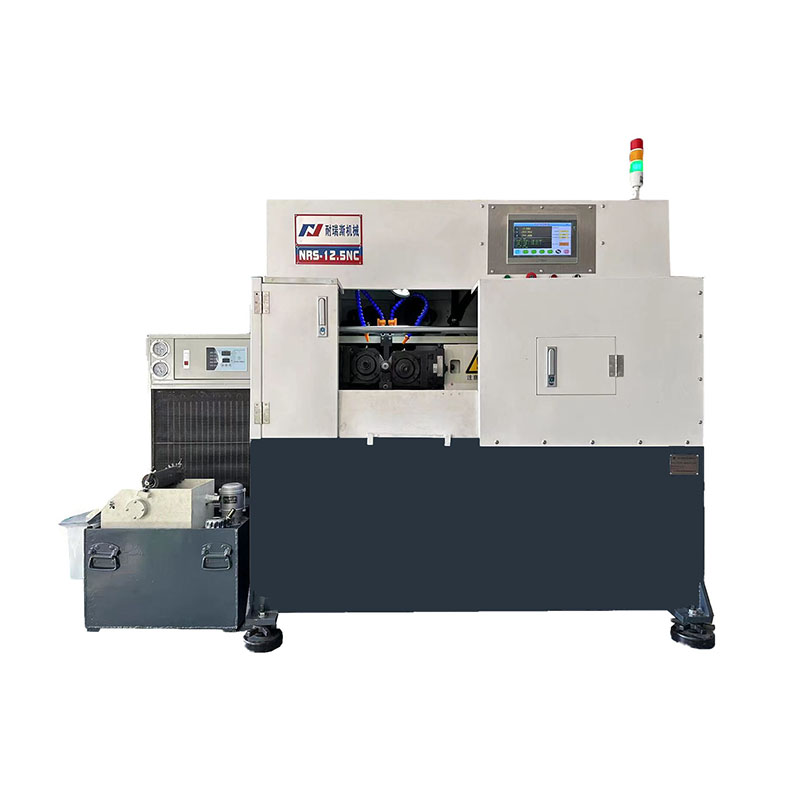

High Speed Precision Thread rolling machine is a new model independently developed by our company. High Speed Precision Thread rolling machine has a solid shell, advanced digital touch screen and control program, high precision, simple operation, widely used in tooth rolling, knurling and other kinds of thread forming processing.

Model:NRS-15NC

Send Inquiry

Product Description

High Speed Precision Thread rolling machine is a new model independently developed by our company. High Speed Precision Thread rolling machine has a solid shell, advanced digital touch screen and control program, high precision, simple operation, widely used in tooth rolling, knurling and other kinds of thread forming processing.

High Speed Precision Thread Rolling Machine features

1.workpiece clamping type & through type rolling machine

The digital indicator (optional) can be used to fine-tune the spindle Angle setting

2. The left and right spindles are driven by their own independent motors, and the deviation between teeth is eliminated by synchronous control to achieve perfect rolling

3.The pitch adjustment of the roller is controlled by the input value of NC screen

4.Processing conditions and dimension correction are stored with data, and data reproduction is very simple during repeated processing

5.Standard 3 axis, optional optional 2 axis CNC structure, through a simple command can be carried out complex rolling processing

6. High rigidity linear guide rail and large diameter ball screw are used to realize the stability of the right spindle table

7. Improve the previous model, by modifying the data command can easily complete pitch matching

8.Non-hydraulic type favorable environmental protection, machining accuracy due to temperature change influence is small, accuracy is stable

High Speed Precision Thread Rolling Machine NRS-15NC:

Technical Specifications

NRS-15NC

Product Name

High Speed Precision Thread Rolling Machine

Range of thread

Plunge rolling MAX. diameter

40mm

Thru feed rolling MAX. diameter

25mm

Rang of length(in-feed)

80mm

Rang of length(thru-feed)

3000mm

Spindle speed

1~70rpm/min CVT

Right spindle feed speed

MAX.1000mm/min

The distance between the spindles

140mm~220mm

Spindle trave

80mm

Spindle rotation Angle

±6°

Height from datum level to center of spindle

125mm

Ball screw lubrication

Automatic forced lubrication

Lubrication of right spindle guide surface

Thread rolling dies

MAX. diameter

175mm

Bore diameter

54mm

Width range

80mm

Key way



Motor power for spindle drive

servomotor2×3.1kw

Collant power

0.09kw

Max rolling pressure

150KN

Height from floor to spindle center

950mm

Operation required space

1600mm*1300mm*1900mm

Net weight

1500kgs

Number of control axes

3 axes

Right spindle mobile servo motor

5.1kw

Min.instruction unit

Straight axi

0.001mm

Rotation axi

0.001°
